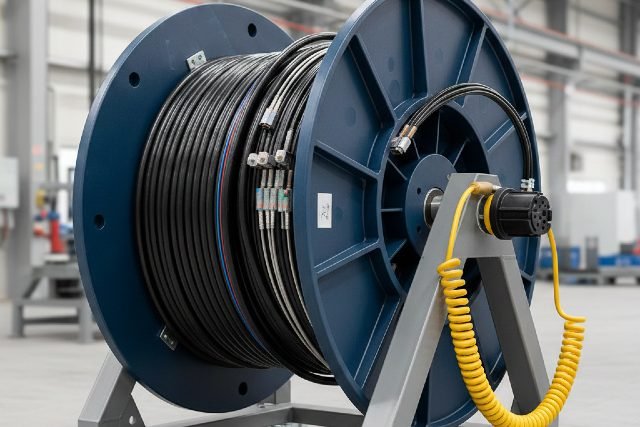

High Capacity Cable Reel for Power and Data Cables

A high capacity cable reel is a critical solution for managing long power and data cables in demanding environments. From industrial facilities to commercial installations, a cable reel ensures safe cable deployment, protects wiring from damage, and improves overall operational efficiency. As power and data infrastructure becomes more complex, the demand for reliable cable management systems continues to grow.

In workplaces where cables are frequently moved, extended, or stored, poor cable handling can lead to safety hazards and costly downtime. A properly selected cable reel eliminates these issues by maintaining organized cable runs while extending the lifespan of power and data cables.

What Is a High Capacity Cable Reel

A high capacity cable reel is a heavy-duty cable management device designed to store, extend, and retract long or thick cables under high load conditions. Unlike standard reels, these cable reels are engineered to handle greater cable lengths, higher voltages, and heavier cable weights without compromising performance.

Cable reels may be manually operated or powered by spring, electric motor, or hydraulic systems. High capacity models are commonly used in industries where cables must move continuously or be deployed across large distances.

Importance of Cable Reels for Power and Data Cables

Cable reels play a vital role in maintaining workplace safety and ensuring consistent electrical and data performance. Loose cables can cause tripping hazards, electrical faults, and premature cable wear. A cable reel keeps cables properly contained and reduces the risk of physical and environmental damage.

According to OSHA electrical safety guidelines, organized cable management significantly reduces workplace accidents and equipment failures. High capacity cable reels also support compliance with industrial safety standards by preventing cable strain and overheating.

Differences Between Power and Data Cable Reels

Power cable reels are designed to handle high electrical loads and varying voltage levels. These reels use robust insulation and materials capable of withstanding heat and mechanical stress. Data cable reels, on the other hand, prioritize signal integrity and shielding to prevent interference and data loss.

Hybrid cable reels are specifically designed to manage both power and data cables within a single system. These reels include advanced shielding to ensure safe operation without electromagnetic interference, making them ideal for modern industrial and commercial environments.

Key Features of a High Capacity Cable Reel

Load capacity is one of the most important features of a high capacity cable reel. It determines how much cable length and weight the reel can safely support. Choosing a cable reel with insufficient capacity can lead to mechanical failure or cable damage.

Drum material also affects durability and performance. Steel drums are commonly used in heavy industrial settings, while composite materials are preferred for mobile or corrosion-sensitive applications. Environmental protection is another critical factor, especially for outdoor cable reels that must withstand dust, moisture, and temperature extremes.

Applications of High Capacity Cable Reels

High capacity cable reels are widely used in manufacturing plants to supply power and data to moving equipment such as cranes, robotic systems, and assembly lines. In construction environments, cable reels provide safe and organized temporary power distribution.

Data centers rely on cable reels to manage long data cables while maintaining signal reliability. Event production and broadcasting industries use cable reels to streamline setup and teardown while protecting sensitive cabling systems.

How to Choose the Right Cable Reel

Selecting the right cable reel begins with understanding the type of cable being used, including its length, diameter, and electrical or data requirements. Environmental conditions such as indoor or outdoor use must also be considered when choosing a cable reel.

Experts recommend selecting a cable reel with at least twenty percent higher load capacity than the actual requirement. This ensures smooth operation and prevents premature wear or failure over time.

Installation and Maintenance of Cable Reels

Proper installation is essential for safe and efficient cable reel operation. The reel should be mounted securely on a stable surface and aligned correctly to avoid uneven cable winding. Incorrect installation can reduce performance and shorten the lifespan of the cable reel.

Regular maintenance extends the operational life of a high capacity cable reel. Periodic inspections, cleaning of drum surfaces, and testing of retraction mechanisms help prevent unexpected failures and downtime.

Real-World Example of Cable Reel Efficiency

A manufacturing facility upgraded its cable management system by installing high capacity cable reels across its production floor. The result was a significant reduction in cable damage, improved workflow efficiency, and enhanced compliance with workplace safety regulations.

This example demonstrates how investing in a quality cable reel delivers measurable operational benefits and long-term cost savings.

Frequently Asked Questions About Cable Reels

A high capacity cable reel typically lasts between ten and fifteen years when properly maintained. Hybrid cable reels can safely handle both power and data cables if they are designed with appropriate shielding. Motorized cable reels are especially beneficial in environments where long or heavy cables are used frequently, as they reduce manual labor and improve safety.

Conclusion

A high capacity cable reel is an essential investment for any operation that relies on reliable power and data cable management. By improving safety, protecting cables, and increasing efficiency, a cable reel supports smoother operations across industrial, commercial, and technical environments.

Choosing the right cable reel, installing it correctly, and maintaining it properly ensures long-term performance and maximum return on investment. As power and data demands continue to grow, high capacity cable reels remain a dependable and future-proof solution.
